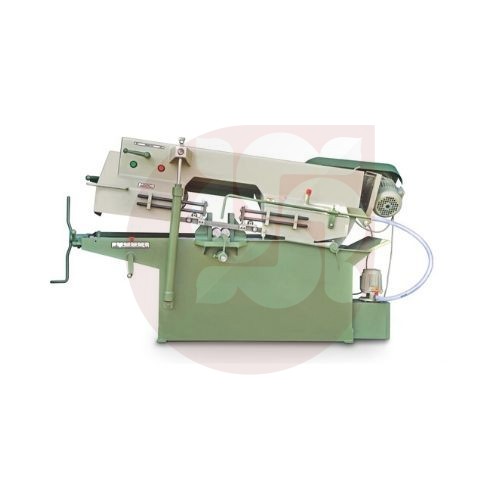

Hinge Type Bandsaw Machine
| Specification | HTB200 | HTB250 | HTB300 | HTB350 | HTB400 | HTB450 | HTB500 |
| Capacity | |||||||
| Cutting Capacity – Round | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm | 450 mm | 500 mm |
| Cutting Capacity – Square | 175 mm | 225 mm | 275 mm | 325 mm | 375 mm | 425 mm | 475 mm |
| Saw Blade Dimension (mm) | 3000 × 27 × 0.9 | 3300 × 27 × 0.9 | 3760 × 34 × 1.1 | 4100 × 34 × 1.1 | 4420 × 34 × 1.1 | 4570 × 34 × 1.1 | 4600 × 34 × 1.1 |
| Blade Speed(meter/min) | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 |
| Electricals | |||||||
| Drive Motor(HP / RPM) | 1 / 1440 | 1.5 / 1440 | 2 / 1000 | 2 / 1000 | 2 / 1000 | 2 / 1000 | 3 / 1000 |
| Coolant Pump Motor(HP / RPM) | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 | 0.25 / 2800 | 0.25 / 2800 |
| Machine Dimension & Weight (Approx.) | |||||||
| Length x Width | 1630 × 750 mm | 2000 × 750 mm | 2400 × 930 mm | 2550 × 930 mm | 2650 × 930 mm | 2750 × 930 mm | 3000 × 930 mm |
| Height | 870 mm | 950 mm | 1050 mm | 1050 mm | 1215 mm | 1225 mm | 1400 mm |
| Weight | 320 kg. | 390 kg. | 770 kg. | 820 kg. | 900 kg. | 990 kg. | 1100 kg. |
Standard Accessories:
- Main drive motor
- Coolant pump motor
- Bi-metal cutting blade
- Chip removing brush
- Reduction gear box
- Worm and motor pulley with v-belt
- Job stopper assembly
- Manually adjustable feeding hydraulic cylinder
- Chip collecting tray
- On-off contactor with push buttons
- Carbide wear pad blade guide system
Optional Accessories:
- Adjustable bar stand
- Swivel base
- Bi-metal Bandsaw blades
- V.F.D. with A.C. drive system
As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
